Air control kit for

Automatic / 3 Gallon Seamless / Dual Wireless & Tyre Wand / Dual Digital

What's in the kit?

All major components selected below including all fittings & easy to follow step by step instructions & schematic drawings.

Your tailor made kit package

NOTE: The Part Numbers Generated below represent your tailor made On Board Air System, both part numbers need to be quoted when ordering to avoid disappointment.

Main Kit

AC3050D - Dual Digital Pressure Monitoring

SKU: AC3050D

Availability: Currently Replenishing Stock Levels, "Request Quote" for Availability. Please note: The quickest way to enquire about ETA is to fill out the Request a Quote form.

Dual Digital Pressure Monitoring

Dual Digital (Req. 52.5mm minimum hole) Pressure Monitoring Gauge, 7 Selectable Display Colours, PSI or BAR read outs, 0-100PSI, IP67 Rated Sensors.

Gauge

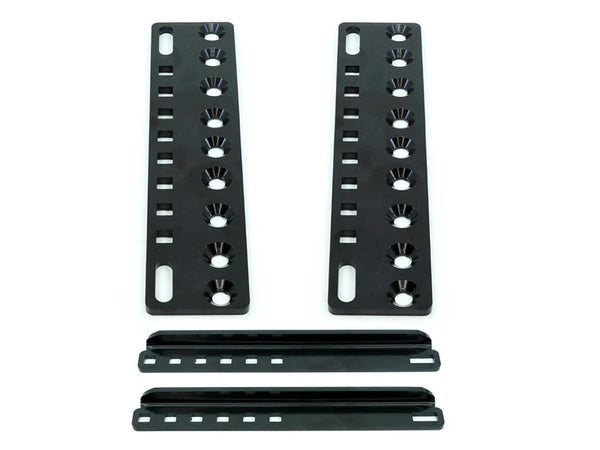

BKTM01 - Universal Tank & ASU Chassis Mount Kit

SKU: BKTM01

Availability: In Stock

Universal Tank & ASU Chassis Mount Kit

Our Universal Tank & ASU Chassis Mount Bracket Kit is designed exclusively for use with our AC9013 & AC9011 Aluminium Air Tanks & Air Supply Unit ASU. Part Number: BKTM01.

Benefits

Universal Compatibility this bracket kit is compatible with a wide range of vehicles and mounting positions.

Secure and Space-Efficient Installation The BKTM01 bracket kit provides a secure mounting solution for your AC9013 & AC9011 Aluminium Air Tanks & ASU, ensuring they are firmly affixed along the vehicle's chassis.

Easy Installation The BKTM01 is designed for hassle-free installation. Its user-friendly design ensures that even those with minimal technical expertise can effortlessly mount the air tanks and ASU to the chassis.

Saves Interior Space for Cargo or Passengers With the tanks and ASU securely mounted along the chassis, valuable interior space is freed up for additional cargo or passengers.

Weather and Corrosion Resistance The BKTM01 bracket kit uses our e-coating process to ensure suitability for underbody mounting and comes with galvanised hardware.

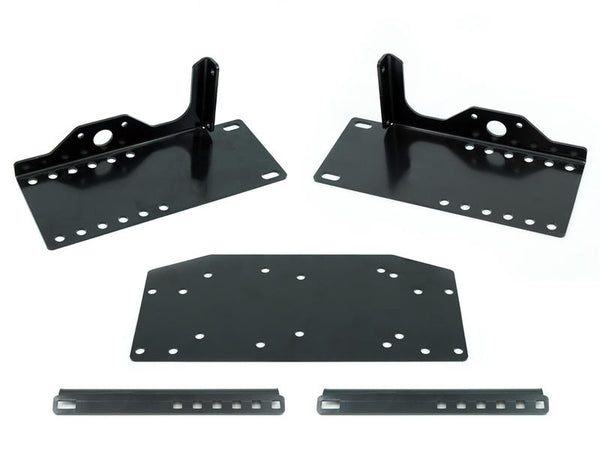

BKCM01 - Universal Compressor Chassis Mount Kit

SKU: BKCM01

Availability: Currently Replenishing Stock Levels, "Request Quote" for Availability. Please note: The quickest way to enquire about ETA is to fill out the Request a Quote form.

Universal Compressor Chassis Mount Kit

Our Universal Air Compressor Chassis Mount Bracket Kit, designed exclusively for use with our AC8002 Direct inflation and AC8110 Heavy Duty Air Compressor. Part Number: BKCM01.

Benefits

Universal Compatibility this bracket kit is compatible with a wide range of vehicles and mounting positions.

Secure and Space-Efficient Installation The BKCM01 bracket kit provides a secure mounting solution for your Airbag Man compressor, ensuring the compressor remains firmly affixed along the vehicle's chassis.

Easy Installation The BKCM01 is designed for hassle-free installation. Its user-friendly design ensures that even those with minimal technical expertise can effortlessly mount the compressor to the chassis.

Saves Interior Space for Cargo or Passengers With the compressor mounted along the chassis, valuable interior space is freed up for additional cargo or passengers.

Weather and Corrosion Resistance The BKCM01 bracket kit uses our e-coating process to ensure suitability for underbody mounting and comes with galvanised hardware.

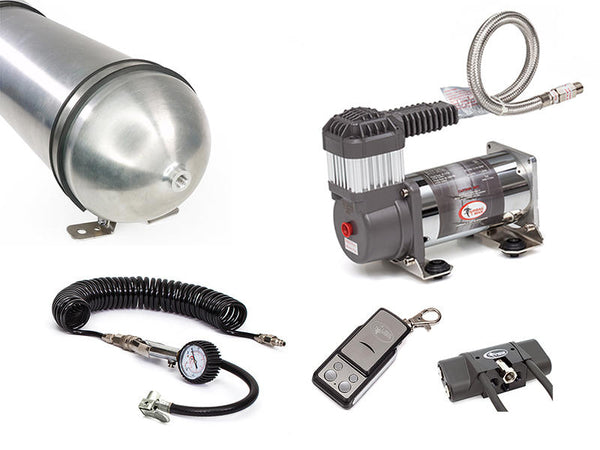

AC3013W - Dual Wireless Air Control Kit with Tyre Inflation using 3 Gallon Air Tank and Heavy Duty Compressor

SKU: AC3013W

Availability: In Stock

Dual Wireless Air Control Kit with Tyre Inflation using 3 Gallon Air Tank and Heavy Duty Compressor

Perfect for all Airbags & Tyres, AC8110 High Quality Air Compressor 200PSI Working Pressure, 50% Duty Cycle, 76 LPM / 2.70 CFM @ 0PSI, Max Amp Draw 35 Amps, Size: 220mm L x 115mm W x 175mm H, Space Required (open at one end for ventilation) 336mm L x 127mm W x 222mm H.

3 Gal / 11 L Seamless Lightweight Aluminium Air Tank, SAE J10 Approved, No Corrosion, Max Working Pressure 200PSI, Pressure Tested to 1000PSI, 3 x 1/4″ NPT Ports Inc. Drain Port, Multi-position Low Profile Bracket Set, Size: 605mm L x 168mm D x 194mm H (with mounting legs attached)

Dual Wireless Key Fob Airbag Controller Inflate & Deflate with Sliding Button Shield, High Quality Valve Block 135mm L x 55mm W x 46mm H, Tyre Inflation Wand 7.5 m / 25′ Max Length with In-Built High Quality Inflator Gauge
