Air Jacks

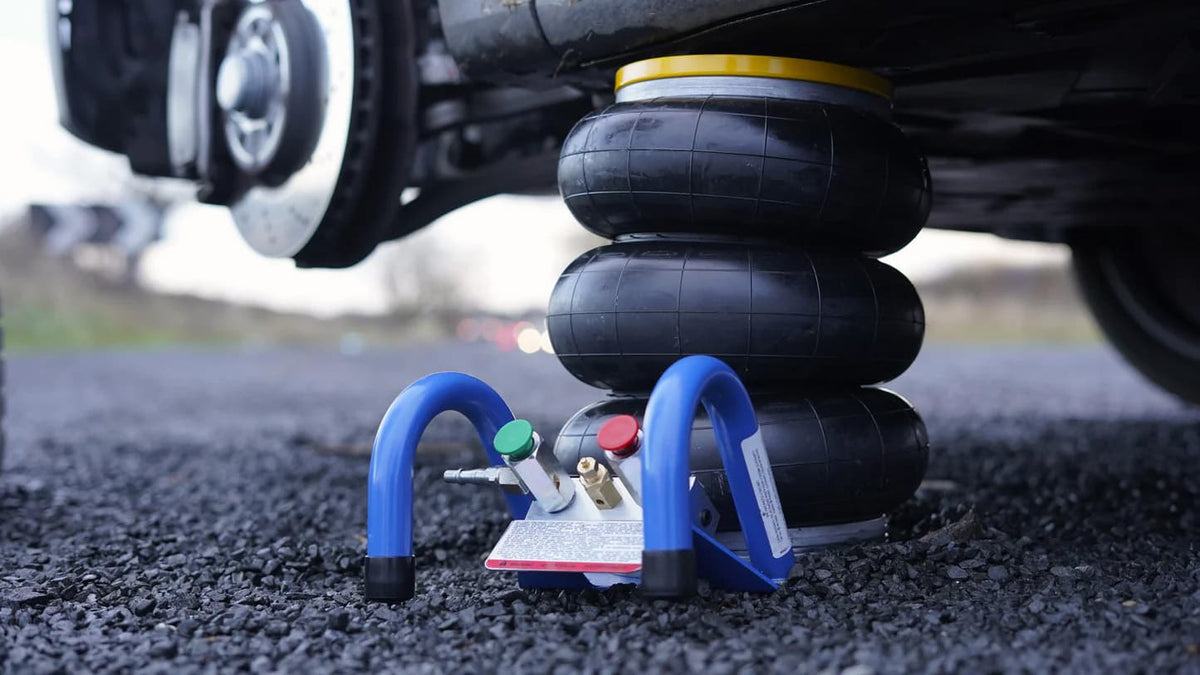

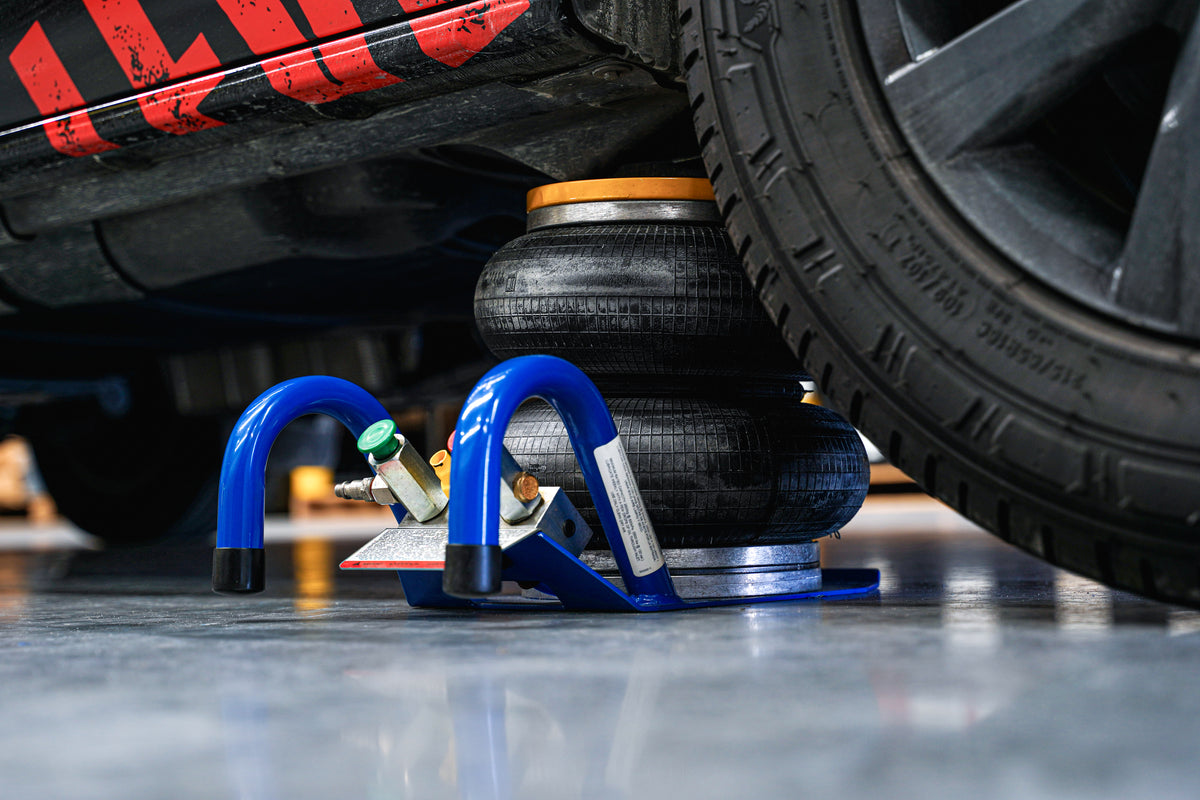

Airbag Man Air Jacks by Selson are a unique design that uses compressed air to raise and lower motor vehicles quickly and easily. Their safety, reliability and speed make our air jacks the ideal choice for underbody servicing, wheel alignment, tyre replacement services and body repair work.

The original Selson Air Jack was designed and engineered in Australia by Matthew Seltz, a German immigrant residing in Melbourne.

The Air Jack is a proven product both in Australia and in the United States. Selson is approved for use with NATO, and after extensive testing is now regularly used by the US Armed Forces.

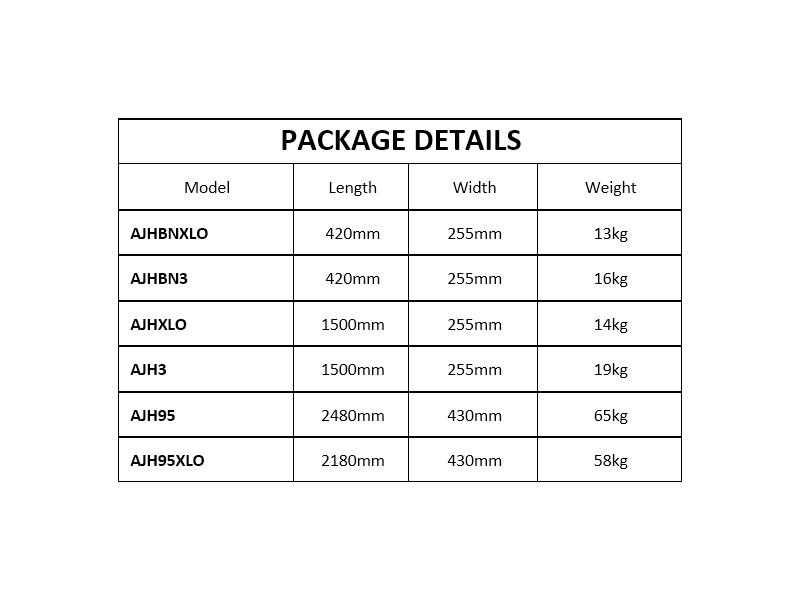

Part No. Lift Capacity Min Height Max Height Length Width Working Pressure Weight

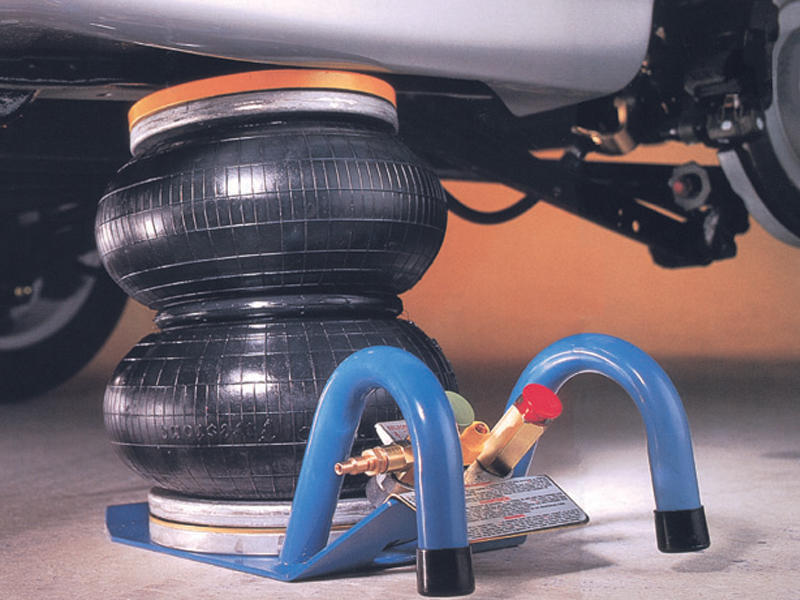

AJHBNXLO 2500 kg 130 mm 340 mm 420 mm 255 mm 100 psi 13 kg
AJHBN3 2500 kg 155 mm 465 mm 420 mm 255 mm 100 psi 16 kg

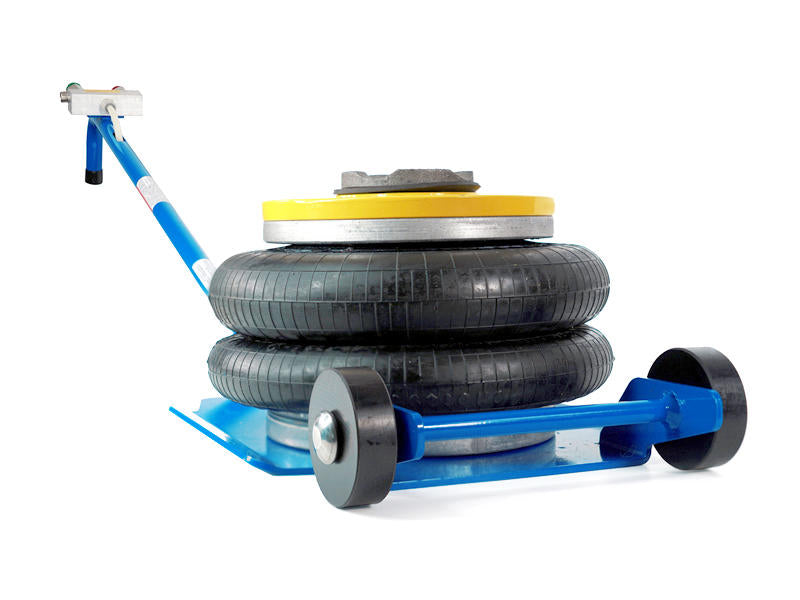

AJHXLO 2500 kg 130 mm 340 mm 1500 mm 255 mm 100 psi 14 kg

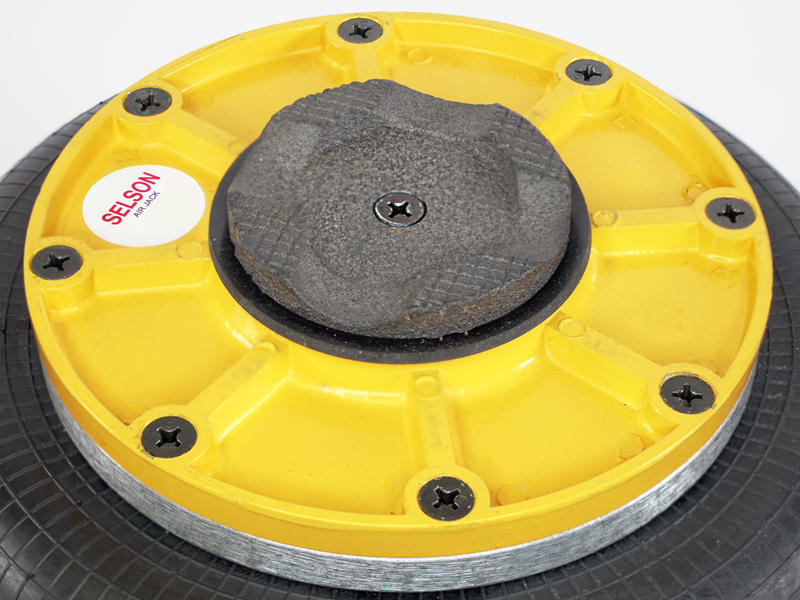

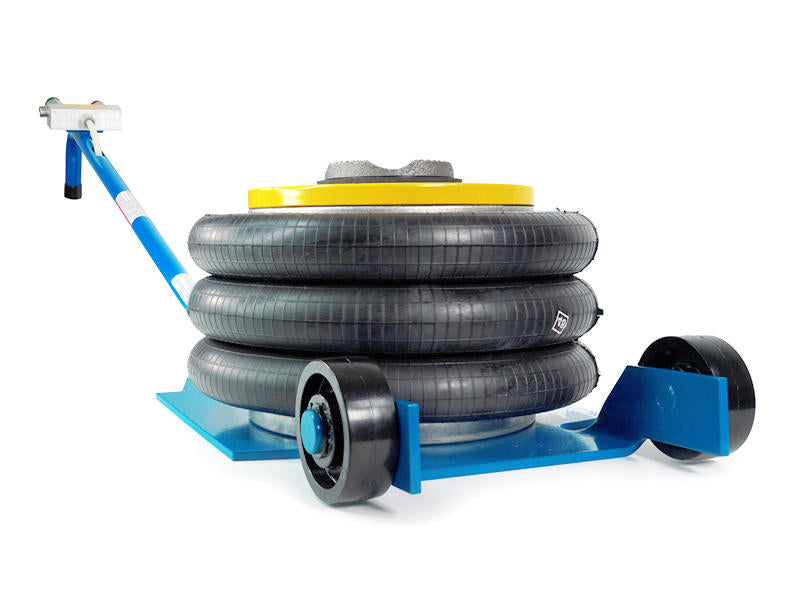

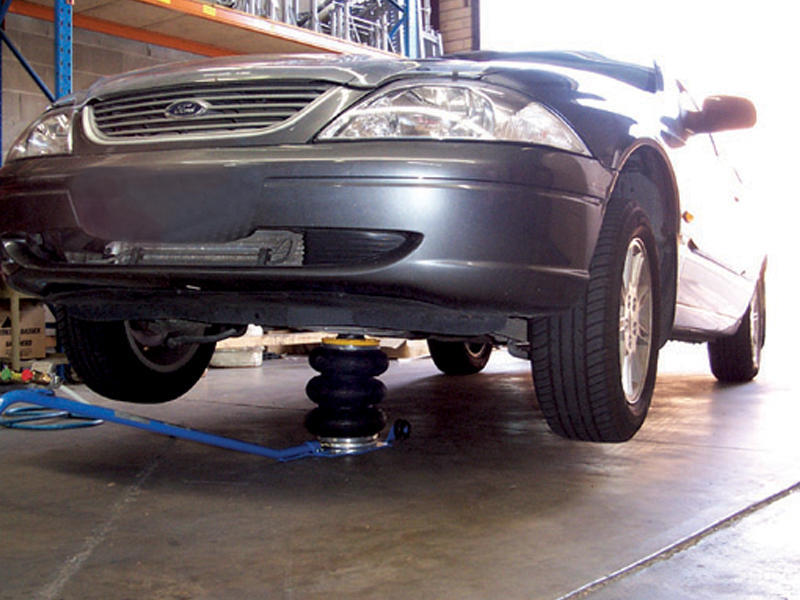

AJH3 2500 kg 155 mm 465 mm 1500 mm 255 mm 100 psi 19 kg

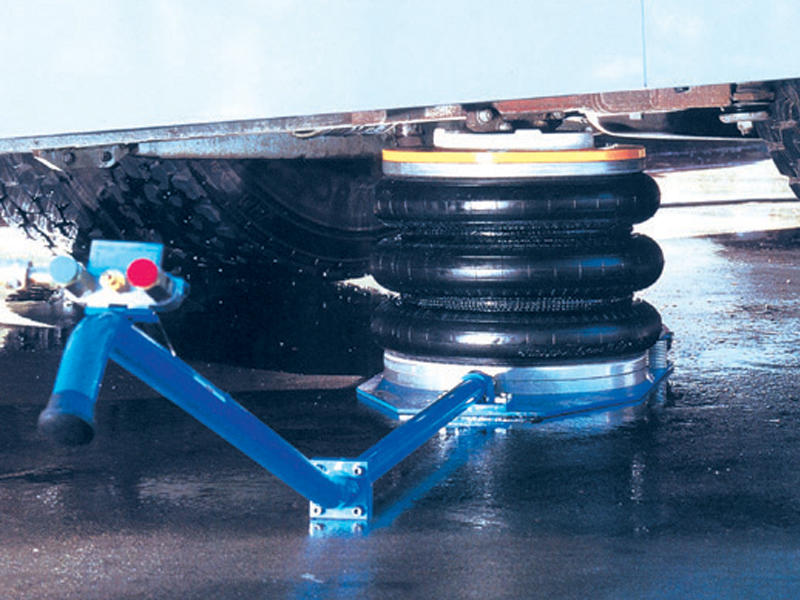

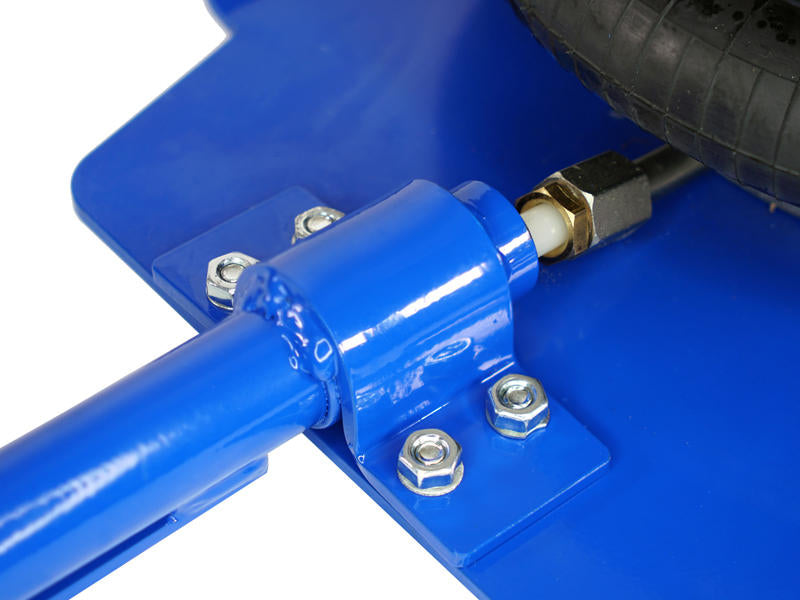

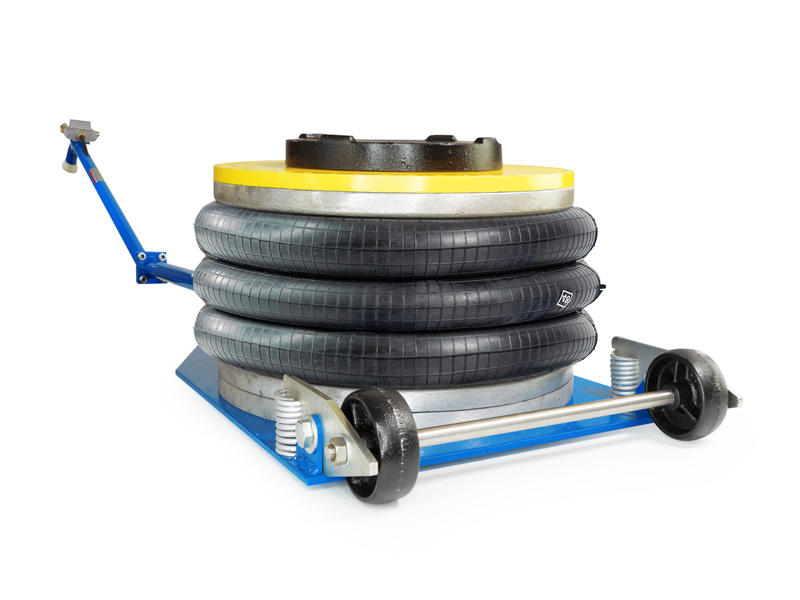

AJH95 7000 kg 230 mm 490 mm 2480 mm 430 mm 100 psi 65 kg

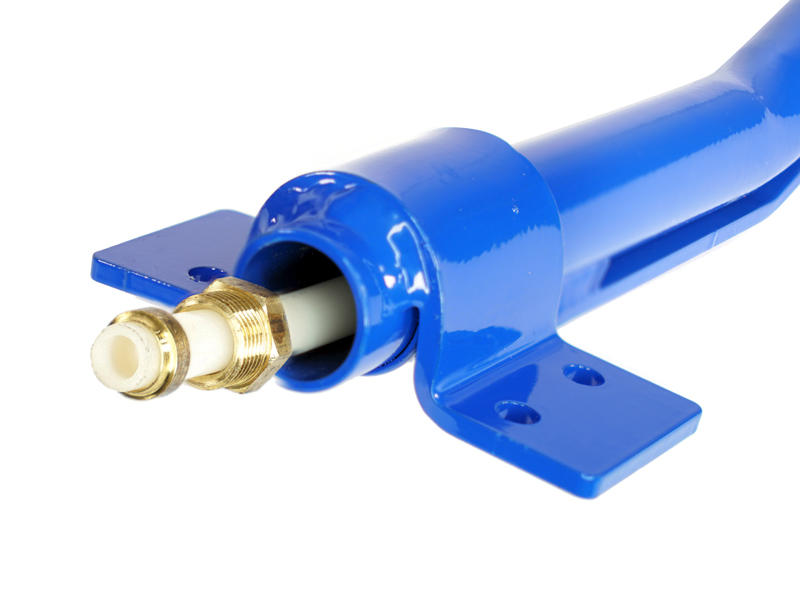

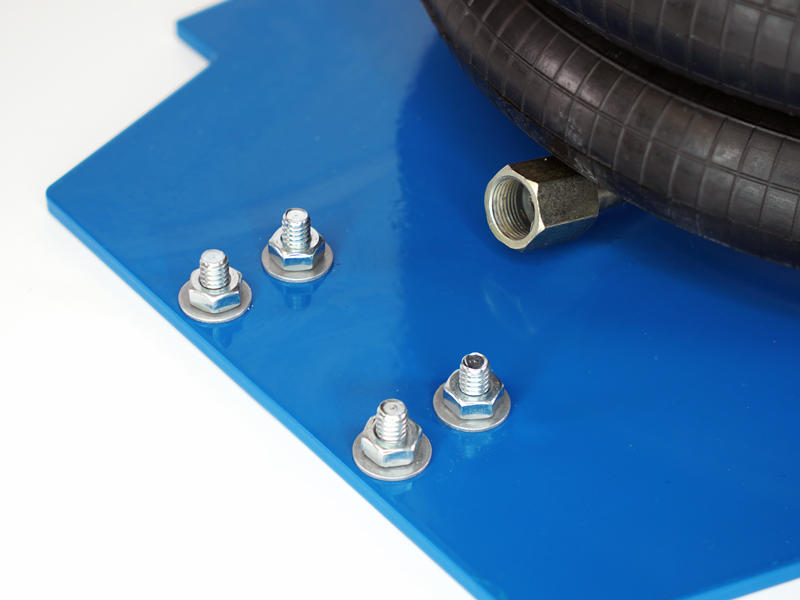

AJH95XLO 7000 kg 190 mm 370 mm 2180 mm 130 mm 100 psi 58 kg

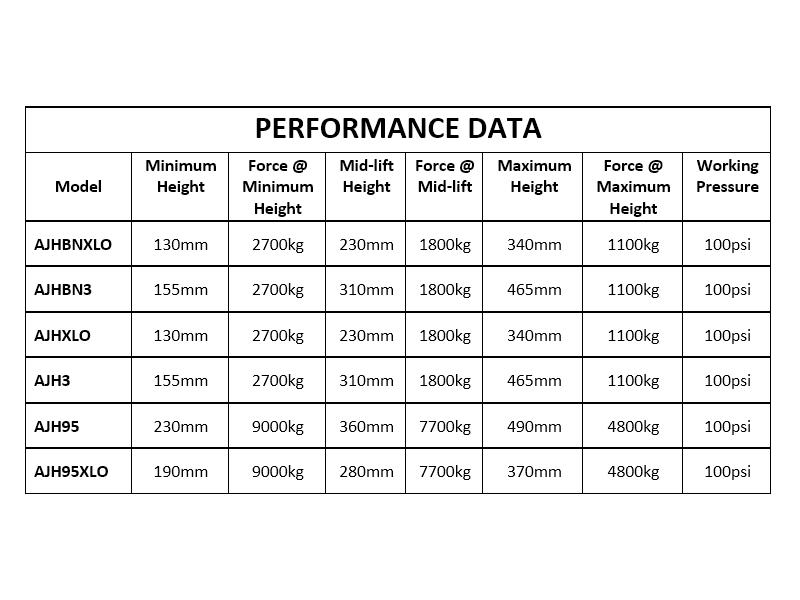

Lift capacity measured at 50% travel. For more info please get in touch with our friendly Airbag Man Team.





Fast and friendly

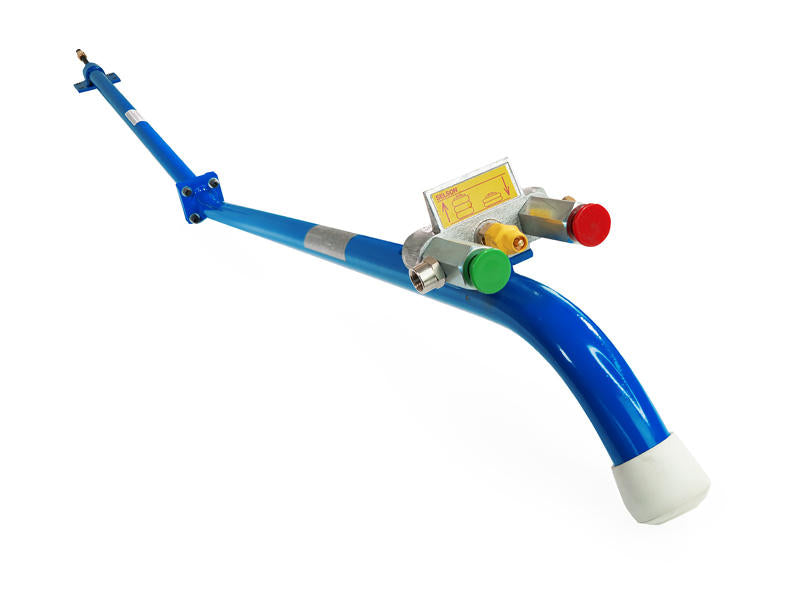

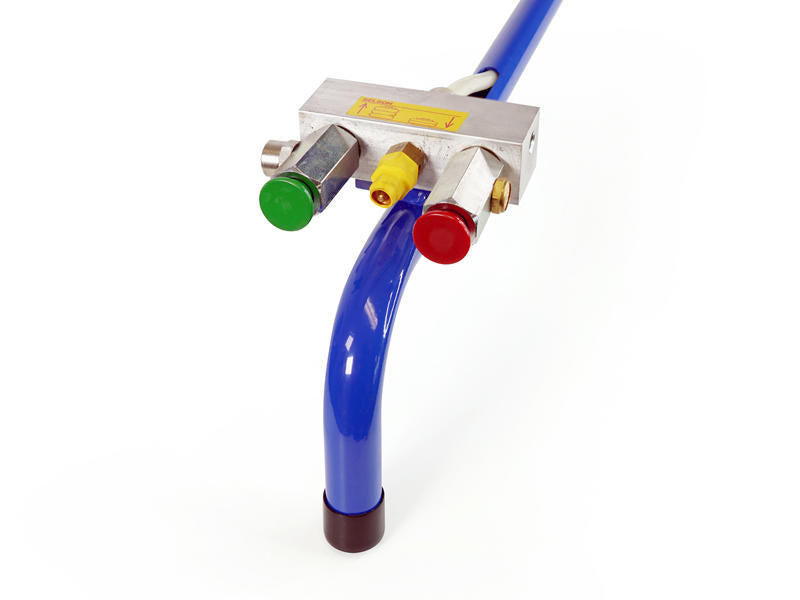

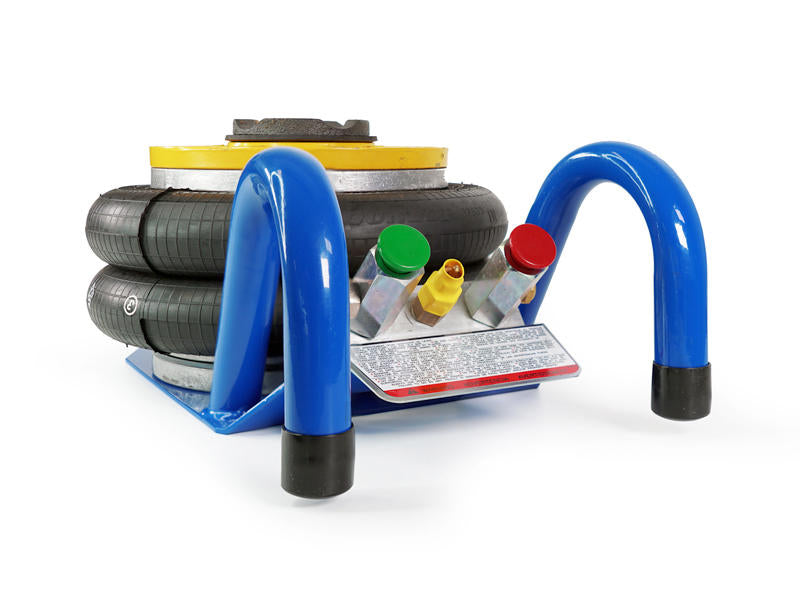

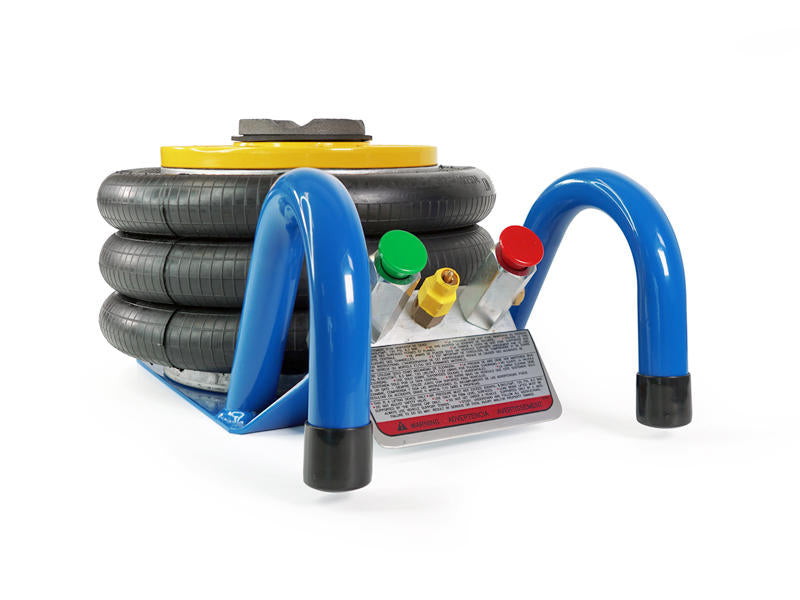

Two push button valves make the air jacks quick and easy to operate. Press green to raise and press red to lower. Their speed of operation over conventional jacks will significantly reduce the time required to lift a vehicle. And because they are light weight relative to their capacity, they are portable.

Designed for stability

Inside the air jack there is a unique internal telescopic stablising column. This column provides stability to the jack during elevation but still allows some lateral movement, which enables the head cap of the jack to follow the arc of the vehicle being elevated. This feature combined with a wide base gives maximum stability on hard or soft surfaces.

Overload safety valve

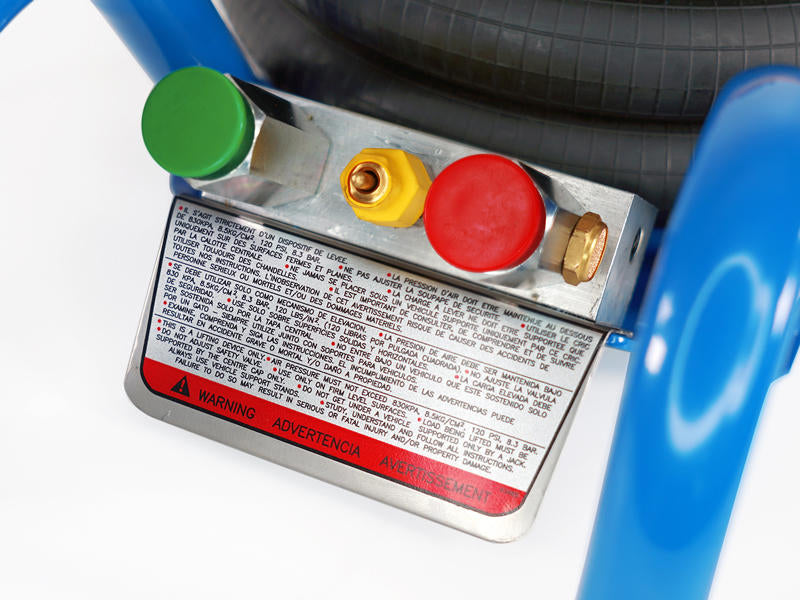

As indicated in the specifications, the working pressure for the air jacks is 690 kPa (100 psi). To ensure maximum operator safety, a factory set safety valve is mounted on the control manifold. The valve is set at approximately 20% more than the standard working pressure and will prevent the air jack from being accidentally overloaded or over inflated.

Easy-care long life

Very few moving parts mean maintenance costs associated with the air jacks are kept to an absolute minimum. The air springs are made of a 2-ply neoprene rubber, that is oil and ozone resistant and will not easily perish or crack. Airbag Man air jacks will not leak, deflate or become unstable. An air jack with its long and trouble-free service life is an investment in speed, safety and economy that can reduce your jack replacement and repair costs.

Only one airline needed

Once in a lift position, the air line can be disconnected and the jack will continue to do its job. This allows the air supply to be used for any other pneumatic tools or equipment.

Reliability built-in

All Selson air jacks are subject to rigorous checks during manufacture and assembly. Each jack is individually tested at the maximum recommended pressure to ensure reliability and performance as specified.

For cars, buses and trucks

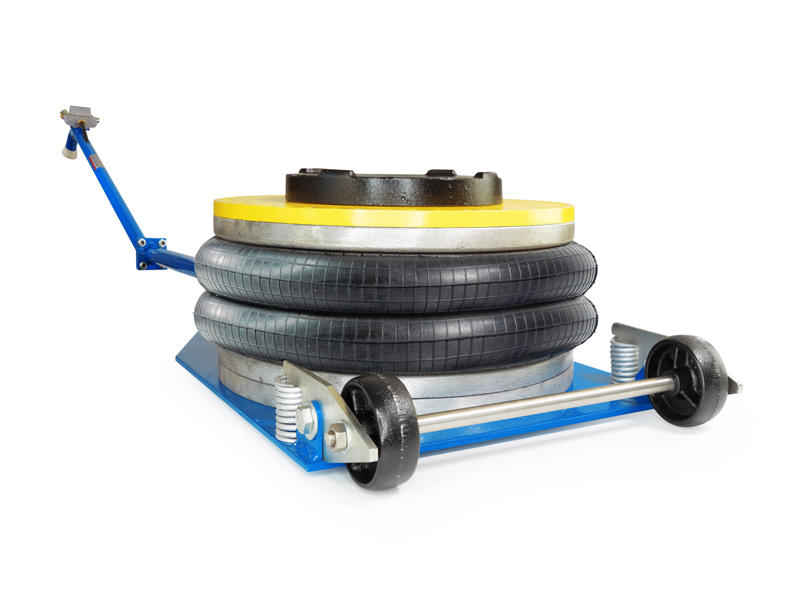

With varying lift capacities and different heights, there is a Selson model to suit most applications. The hand held models that are easily stored and portable are ideal for use on alignment and frame racks and in road service vehicles. The roll-around Hustler models, with long reach handles are best suited to service bays and workshops.

Quality assurance

The Selson Air Jacks range also carries our standard 12 month warranty against faulty workmanship and materials, and are backed by a comprehensive service and replacement parts network.
