All major components selected below including all fittings & easy to follow step by step instructions & schematic drawings.
NOTE: The Part Numbers Generated below represent your tailor made On Board Air System, both part numbers need to be quoted when ordering to avoid disappointment.
SKU: AC3021

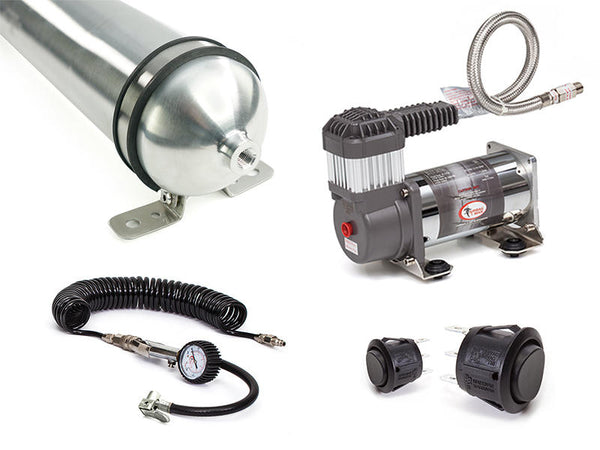

Dual Rocker Air Control Kit with 1 Gallon Air Tank and Heavy Duty Compressor
Perfect for all Airbags & Tyres, AC8110 High Quality Air Compressor 200PSI Working Pressure, 50% Duty Cycle, 76 LPM / 2.70 CFM @ 0PSI, Max Amp Draw 35 Amps, Size: 220mm L x 115mm W x 175mm H, Space Required (open at one end for ventilation) 336mm L x 127mm W x 222mm H.
1 Gal / 4 L Seamless Lightweight Aluminium Air Tank, SAE J10 Approved, No Corrosion, Max Working Pressure 200PSI, Pressure Tested to 1000PSI, 3 x 1/4″ NPT Ports Inc. Drain Port, Multi-position Low Profile Bracket Set, Size: 605mm L x 100mm D x 126mm H (with mounting legs attached)
Dual Rocker Airbag Control for Inflate & Deflate, Req. 20mm Notched Hole & Tyre Inflation Wand 7.5 m / 25″ Max Length with In-Built High Quality Inflator Gauge
SKU: AC3050
Dual Analogue Pressure Monitoring
Dual Needle 12 Volt (Req. 52.5mm minimum hole) Pressure Monitoring Gauge, 0-150PSI.
SKU: BKTM01
Universal Tank & ASU Chassis Mount Kit
Our Universal Tank & ASU Chassis Mount Bracket Kit is designed exclusively for use with our AC9013 & AC9011 Aluminium Air Tanks & Air Supply Unit ASU. Part Number: BKTM01.
Benefits
Universal Compatibility this bracket kit is compatible with a wide range of vehicles and mounting positions.
Secure and Space-Efficient Installation The BKTM01 bracket kit provides a secure mounting solution for your AC9013 & AC9011 Aluminium Air Tanks & ASU, ensuring they are firmly affixed along the vehicle's chassis.
Easy Installation The BKTM01 is designed for hassle-free installation. Its user-friendly design ensures that even those with minimal technical expertise can effortlessly mount the air tanks and ASU to the chassis.
Saves Interior Space for Cargo or Passengers With the tanks and ASU securely mounted along the chassis, valuable interior space is freed up for additional cargo or passengers.
Weather and Corrosion Resistance The BKTM01 bracket kit uses our e-coating process to ensure suitability for underbody mounting and comes with galvanised hardware.
SKU: BKCM01
Universal Compressor Chassis Mount Kit
Our Universal Air Compressor Chassis Mount Bracket Kit, designed exclusively for use with our AC8002 Direct inflation and AC8110 Heavy Duty Air Compressor. Part Number: BKCM01.
Benefits
Universal Compatibility this bracket kit is compatible with a wide range of vehicles and mounting positions.
Secure and Space-Efficient Installation The BKCM01 bracket kit provides a secure mounting solution for your Airbag Man compressor, ensuring the compressor remains firmly affixed along the vehicle's chassis.
Easy Installation The BKCM01 is designed for hassle-free installation. Its user-friendly design ensures that even those with minimal technical expertise can effortlessly mount the compressor to the chassis.
Saves Interior Space for Cargo or Passengers With the compressor mounted along the chassis, valuable interior space is freed up for additional cargo or passengers.
Weather and Corrosion Resistance The BKCM01 bracket kit uses our e-coating process to ensure suitability for underbody mounting and comes with galvanised hardware.
