Air control kit FOR

Heavy Duty 12 Volt / No Tank / Dual E-Paddle / Dual Digital

WHAT’S IN THE KIT?

All major components selected below including all fittings & easy to follow step by step instructions & schematic drawings.

Description

YOUR TAILOR MADE KIT PACKAGE

NOTE: The Part Numbers Generated below represent your tailor made On Board Air System, both part numbers need to be quoted when ordering to avoid dissapointment.

Main Kit

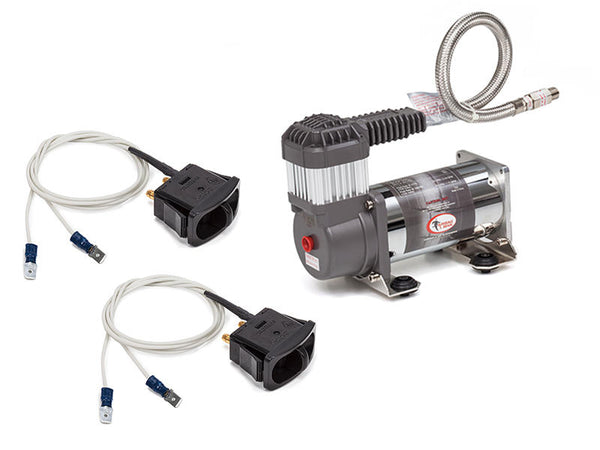

AC3002 - Dual Electric Paddle Air Control Kit with Heavy Duty Compressor (No Air Tank)

SKU: AC3002

Availability: In Stock

Dual Electric Paddle Air Control Kit with Heavy Duty Compressor (No Air Tank)

Perfect for all Airbags & Tyres, AC8110 High Quality Air Compressor 200PSI Working Pressure, 50% Duty Cycle, 76 LPM / 2.70 CFM @ 0PSI, Max Amp Draw 35 Amps, Size: 220mm L x 115mm W x 175mm H, Space Required (open at one end for ventilation) 336mm L x 127mm W x 222mm H.

Select this option if you do not require an Air Tank

Dual E-Paddle Airbag Control for Inflate & Deflate, Req. 22.5mm W x 40.6mm H Hole, Dual Switch Mounting Bracket Included

Gauge

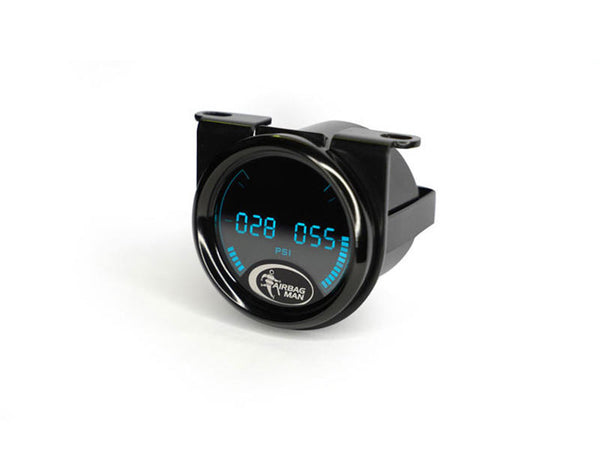

AC3050D - Dual Digital Pressure Monitoring

SKU: AC3050D

Availability: In Stock

Dual Digital Pressure Monitoring

Dual Digital (Req. 52.5mm minimum hole) Pressure Monitoring Gauge, 7 Selectable Display Colours, PSI or BAR read outs, 0-100PSI, IP67 Rated Sensors.

Optional Bracket

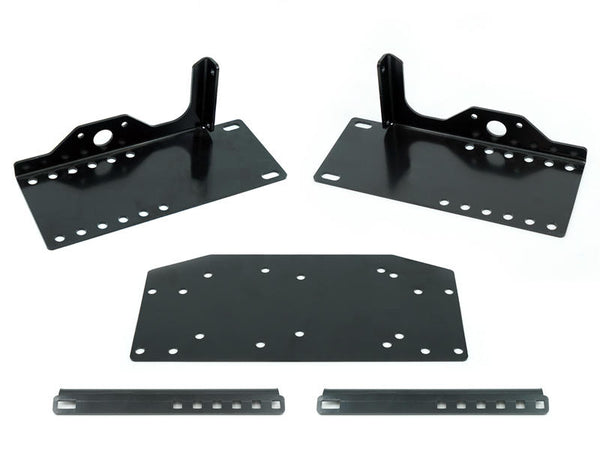

BKCM01 - Universal Compressor Chassis Mount Kit

SKU: BKCM01

Availability: In Stock

Universal Compressor Chassis Mount Kit

Our Universal Air Compressor Chassis Mount Bracket Kit, designed exclusively for use with our AC8002 Direct inflation and AC8110 Heavy Duty Air Compressor. Part Number: BKCM01.

Benefits

Universal Compatibility this bracket kit is compatible with a wide range of vehicles and mounting positions.

Secure and Space-Efficient Installation The BKCM01 bracket kit provides a secure mounting solution for your Airbag Man compressor, ensuring the compressor remains firmly affixed along the vehicle's chassis.

Easy Installation The BKCM01 is designed for hassle-free installation. Its user-friendly design ensures that even those with minimal technical expertise can effortlessly mount the compressor to the chassis.

Saves Interior Space for Cargo or Passengers With the compressor mounted along the chassis, valuable interior space is freed up for additional cargo or passengers.

Weather and Corrosion Resistance The BKCM01 bracket kit uses our e-coating process to ensure suitability for underbody mounting and comes with galvanised hardware.

Add Bracket

TOTAL

$977.27 AUD
