Air control kit for

Light Duty (Airbag Helpers) / Dual E-Paddle / Dual Digital

What's in the kit?

All major components selected below including all fittings & easy to follow step by step instructions & schematic drawings.

Your tailor made kit package

NOTE: The Part Numbers Generated below represent your tailor made On Board Air System, both part numbers need to be quoted when ordering to avoid disappointment.

Main Kit

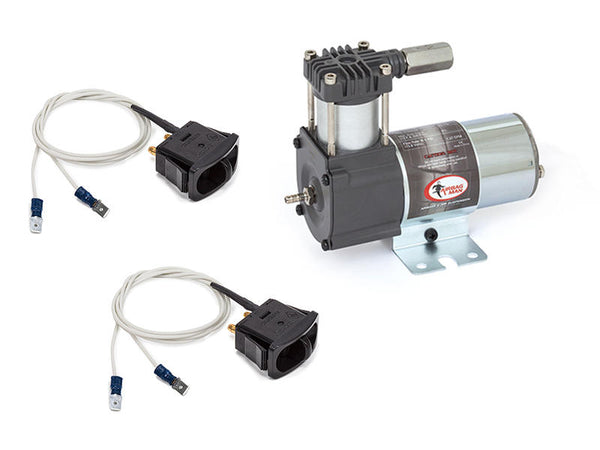

AC3000 - Dual Electric Paddle Air Control Kit with Light Duty Compressor

SKU: AC3000

Availability: In Stock

Dual Electric Paddle Air Control Kit with Light Duty Compressor

Light Duty (Airbag Helpers) AC8002 High Quality Air Compressor 120PSI Working Pressure, 9% Duty Cycle, 36 LPM / 1.27 CFM @ 0PSI, Max Amp Draw 9 Amps, Size 155mm L x 81mm W x 124mm H Space Required (open at one end for ventilation) 205mm L x 81mm W x 174mm H

Dual E-Paddle Airbag Control for Inflate & Deflate, Req. 22.5mm W x 40.6mm H Hole, Dual Switch Mounting Bracket Included.

Gauge

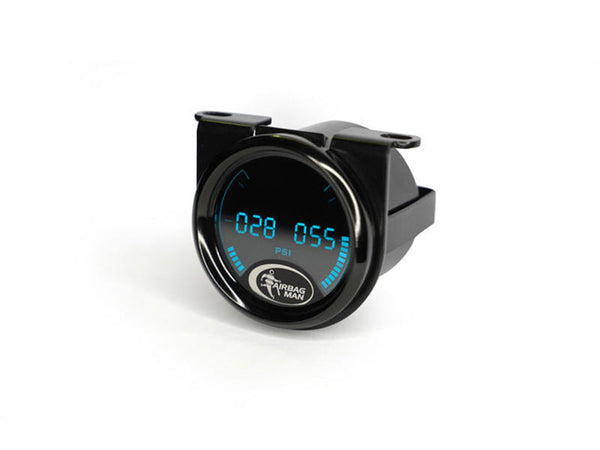

AC3050D - Dual Digital Pressure Monitoring

SKU: AC3050D

Availability: Currently Replenishing Stock Levels, "Request Quote" for Availability. Please note: The quickest way to enquire about ETA is to fill out the Request a Quote form.

Dual Digital Pressure Monitoring

Dual Digital (Req. 52.5mm minimum hole) Pressure Monitoring Gauge, 7 Selectable Display Colours, PSI or BAR read outs, 0-100PSI, IP67 Rated Sensors.

Total
$00.00
$00.00
